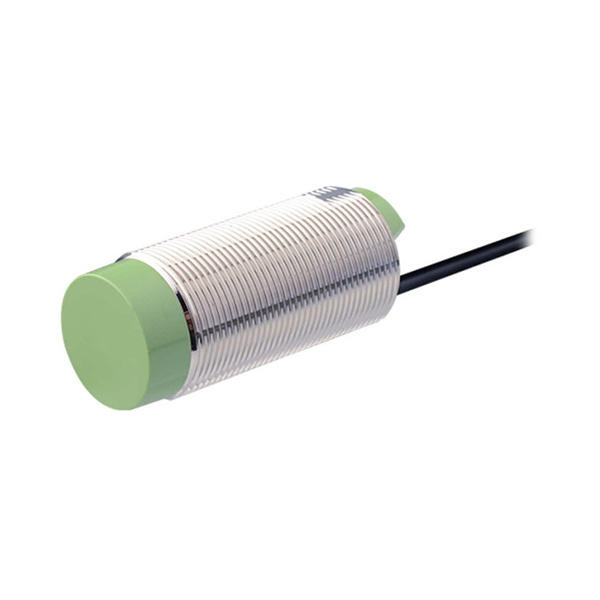

Autonics capacitive sensor M30, PNP NO – CR30-15DP
15 mm Sensing distance, Normally Open, Cable type connection
Regarding Capacitive proximity sensor, when the sensor power is on, the oscillation of the current is close to 0V. When the object approaches to the sensor, the capacitance will be increased and the oscillation of the current is increased. This output section will be operated by increasing the oscillation. The CR30-15DP is a non-contact detector (sensor) which detects the sensing target when it comes close. The diameter of sensing face is 30mm and the sensing distance is also 15mm which makes the product able to detect objects in this active area.

As a quick report, CR30-15DP from Autonics comes with the following features:
30 mm Sensing side diameter.
15 mm Sensing distance.
PNP Normally Open control output.
Detect various materials including metal, iron, stone, plastic, water, and grain.
Built-in sensitivity adjuster for convenient configuration.
Operation indicator (red).
Ideal for level detection and position control.
IP65 ingress protection structure according to IEC standards
Red LED status indicator
Body
This Autonics capacitive sensor’s case and nut parts are made of Brass (nickel plated).

The CR30-15DP features IP65 ingress protection.

The red LED on its body acts as the process indicator.

Connection
The CR30-15DP features standard cable type connection. This black cable covers the sensor’s 3 wires. It is 5 mm in diameter and 2 meters in length, and is made of PVC.

Sensing specifications
This Autonics CR Series sensor’s sensing side diameter is 30 mm. The maximum distance that this sensor can detect its standard sensing target, which is a 50x50x1 mm piece of iron, is 15 mm. This so-called sensing distance differs from one sensing target to another, based on their material, size, etc.

Although almost no one talks about the setting distance of an inductive sensor, it is a big deal to know this concept. Every sensor can detect its standard sensing target in a specified range, no matter what changes occur in ambient temperature, voltage fluctuations, etc. This distance, which is called the setting distance, is from 0 to 10.5 mm for this proximity sensor.

Control output
The output of the CR30-15DP is PNP Normally Open. PNP stands for Positive-Negative-Positive transistors.

Temperature
There are limitations in temperature and humidity in which CR30-15DP capacitive sensor is used:

Storage temperature: -30 ? 80?C
Storage humidity: 35 to 95%RH
Ambient temperature: -25 ? 70?C
Ambient humidity: 35 to 95%RH
Environment resistance is rated at no freezing or condensation.

Industries / applications
Liquid level detection
Detection on workstations and robots
Counting the products on conveyor with counter
